Aircond Piping, Drainage and Wiring: What a Proper Install Includes
What a proper aircond installation includes — quality copper piping, insulation, drainage and correct wiring — and why a poor install fails.
Why Piping and Drainage Matter More Than Most People Realise
Proper aircond installation piping and drainage form the circulatory system of your cooling unit, directly controlling refrigerant flow and moisture removal. If these components fail, your system will leak gas and damage your walls regardless of the brand you bought.
We see this exact scenario constantly across Petaling Jaya. A high-end unit gets completely ruined by cheap connection materials.
Delivering a proper aircond installation Malaysia residents can rely on requires an aircond installation service that prioritises the invisible work.
Modern systems demand highly specific materials to handle increased pressures. Our team strictly follows the 2026 manufacturer guidelines for these critical components.
The Impact of Modern Refrigerants
Copper piping carries the cooling gas between your indoor and outdoor units. The vast majority of new airconds in Malaysia now use R32 refrigerant. This specific gas operates at significantly higher pressures than the older R22 standard.
We refuse to use standard, thin-walled pipes for this exact reason. Daikin and Panasonic guidelines specifically require a minimum copper thickness of 0.61mm (22 SWG) to safely handle R32 gas pressure. Our technicians at Aircond Service Pro Shah Alam strictly enforce this standard to prevent future leaks.
Thin, inferior piping quickly develops microscopic stress cracks under this heavy load. You won’t notice a leak immediately. Cooling simply degrades slowly over the months, and your TNB power bill steadily climbs.
Installation Quality Lasts
The visible part of an installation is the unit on your wall. The invisible part, piping, drainage and wiring, is what determines whether you call a repair technician in year two or year twelve.
Insulation and Drainage Done Right
Proper insulation prevents tropical condensation from ruining your ceilings, while correctly graded PVC drainage ensures water flows safely outside. Skipping either of these steps guarantees a messy, expensive water leak inside your home.
We always upgrade the default materials to combat Malaysia’s high humidity levels.
Upgrading Your Insulation

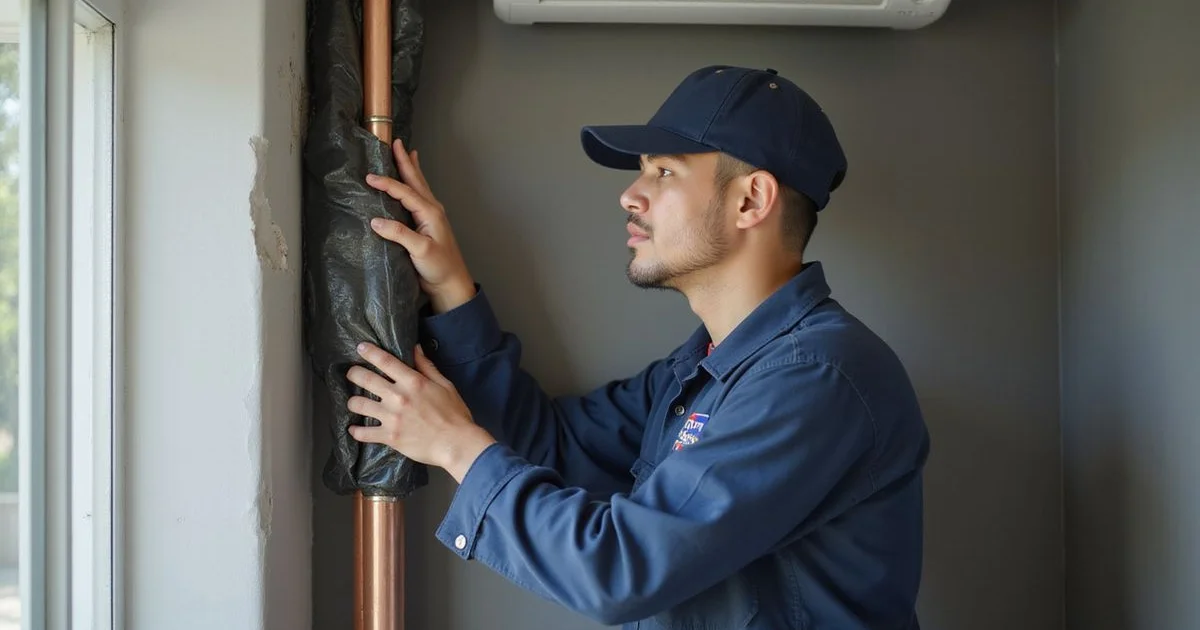

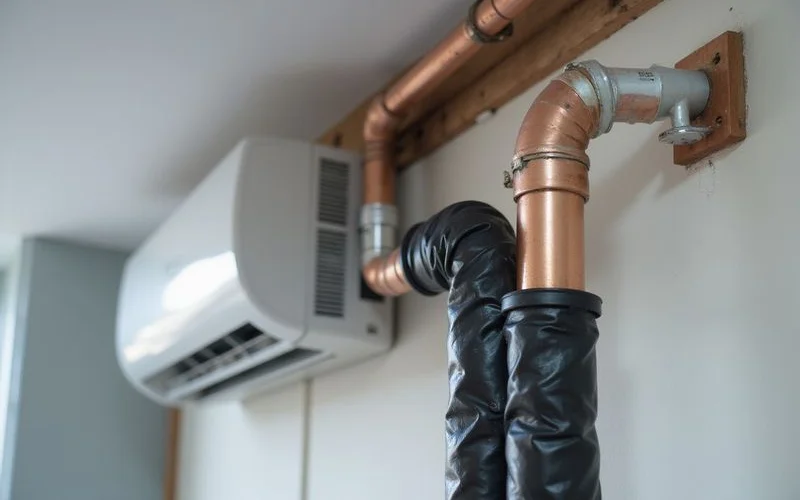

Armaflex insulation wraps the aircond copper piping to stop the freezing surface from sweating. Standard contractor grades often use a thin 9mm foam to cut initial costs. Our installers replace this with a much denser 13mm Class O Nitrile Rubber insulation.
Thicker insulation completely prevents condensation from forming, dripping, and feeding mould growth on your plaster ceiling. Good material must be applied snugly along the entire pipe run without any exposed gaps at the joints. Exposed outdoor sections should also be covered in protective PVC trunking to prevent sun rot.
Routing Your Drainage
PVC drainage safely channels condensate water away from the indoor blower. We typically perform an aircond drainage installation by routing this 15mm or 20mm piping into a bathroom floor trap or external balcony drain.
A reliable drainage setup relies on several non-negotiable rules:
| Drainage factor | Why it matters |
|---|---|
| Correct fall (gradient) | Water must flow naturally by gravity rather than pooling inside the pipe. |
| No sharp bends | Restricting water flow with tight angles quickly causes algae blockages. |
| Secure fixing | Loose pipe clips allow the drainage to sag, ruining the downward gradient. |
| Safe discharge point | The exit must clear the external wall to prevent slow water damage. |
You’ll eventually face a clogged pipe if the installer ignores these basic physics. This exact mistake is the number one reason homeowners call us for an indoor unit spitting water across a living room.
Wiring: The Part That Cannot Be Guessed
Strict aircond wiring requirements dictate a dedicated circuit and correctly sized cables to safely handle heavy, continuous electrical loads. Guessing the wire gauge or sharing the connection with other appliances creates an immediate fire hazard.
We strictly follow the Suruhanjaya Tenaga (Energy Commission) safety mandates for every single residential project.
Meeting Malaysian Safety Standards
Electrical wiring connects your expensive cooling system to the main distribution board. The Energy Commission specifically requires a dedicated 3-core 2.5mm² PVC cable for standard 1.0HP to 1.5HP household units. Our electricians never compromise on this minimum specification.
Undersized cables will run extremely hot under heavy loads. The plastic casing slowly melts away, leaving bare live wires exposed inside your roof space.
Every aircond also requires its own dedicated Miniature Circuit Breaker (MCB). We match the breaker size directly to your machine, typically installing a 15A or 20A switch. Connecting an aircond to a shared lighting or socket ring will overload the circuit and constantly trip your main power.
Your Next Steps for a Safe Setup
Our technicians physically check the data plate on your specific unit to calculate the exact current draw. Nothing gets left to chance during this crucial step.
For a comprehensive look at how installation day unfolds, review our guide on what to expect during installation. You should also plan for the future by exploring our routine aircond chemical wash and fast aircond repair services.
We promise that getting the aircond installation piping, heavy-duty drainage, and dedicated wiring done perfectly the first time saves you massive headaches later.
If you are planning an upgrade in Shah Alam, Bukit Jelutong, or Petaling Jaya, request an installation quote today. Our senior assessors will review your exact layout. You’ll receive a transparent, fixed price before any work begins.
